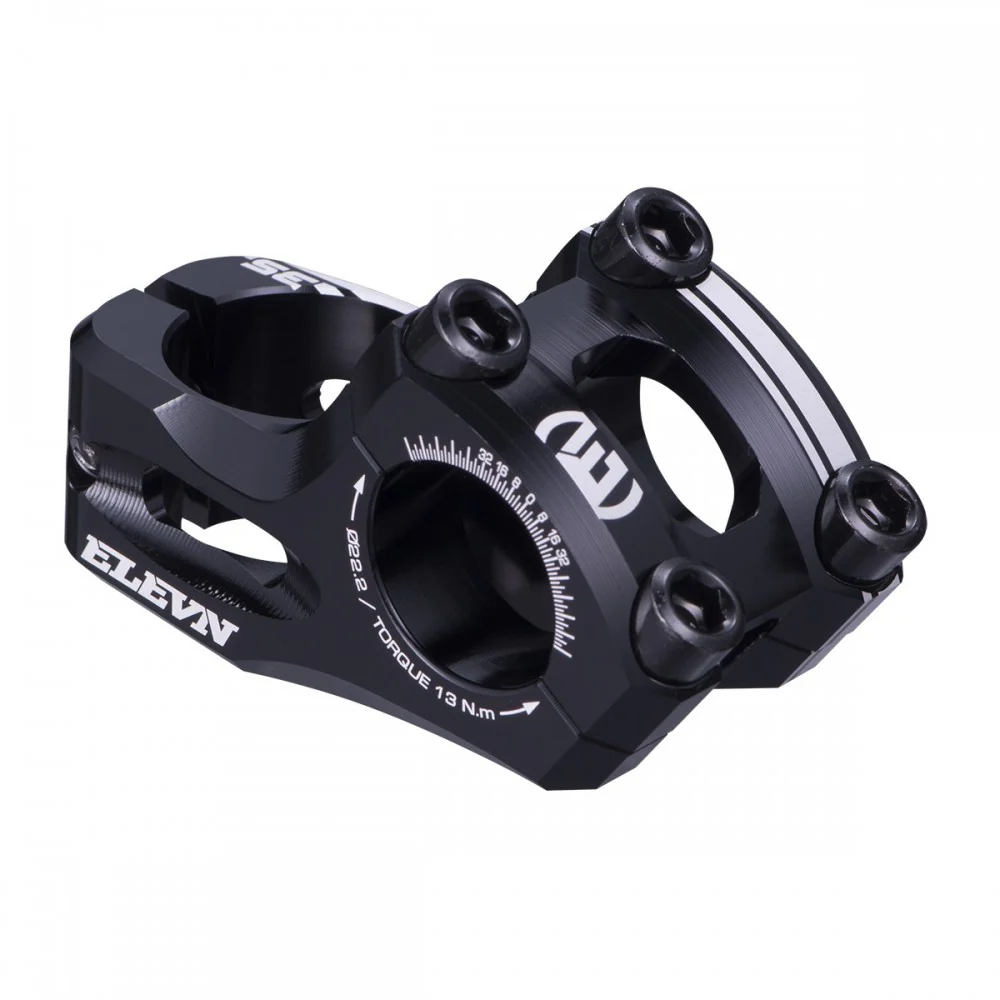

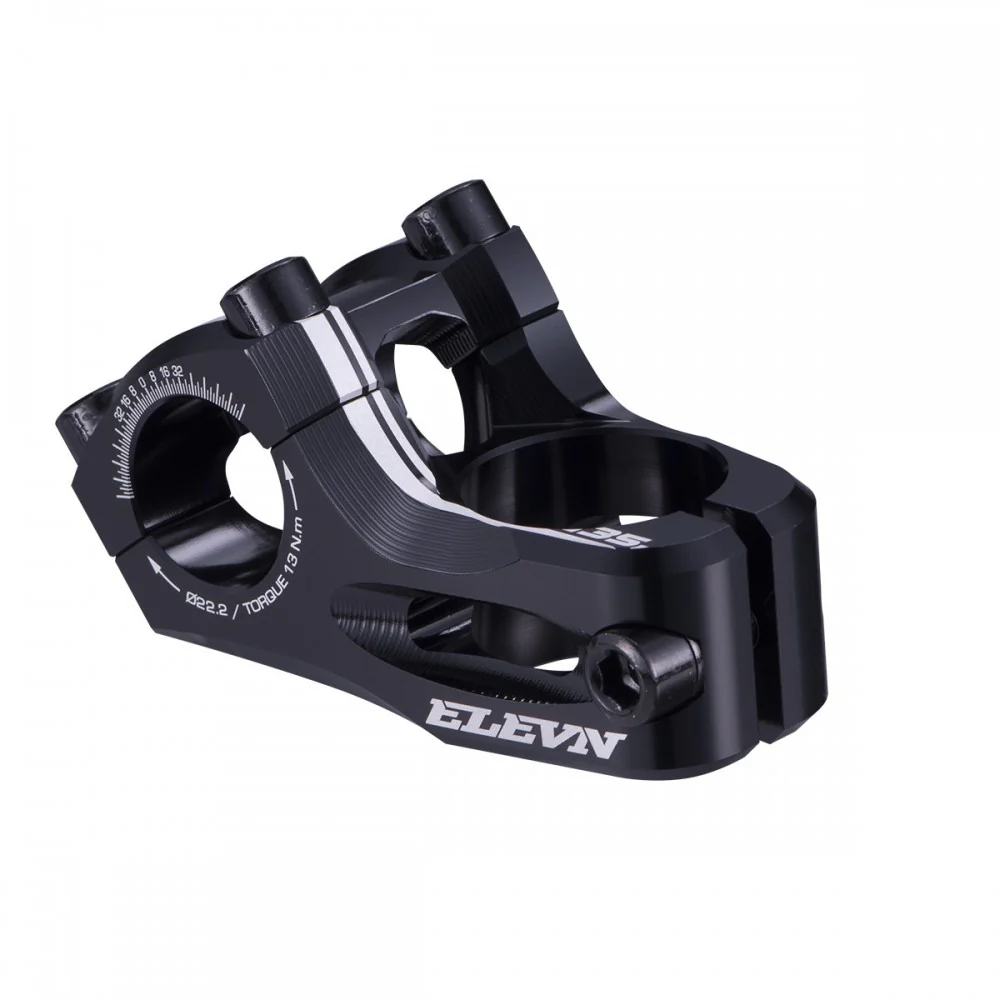

Designed with attention to detail in mind, the new Elevn 22.2 stem features smooth rounded edges with beveled sides, a minimal weight saving top cap mounting system, 5mm Allen bolts, laser etched graphics and handle bar adjustment gauges. This 6061-T6 CNC’d stem was designed to have maximum clamping power with being minimal in size overall as possible, while being strong enough for todays top riders to race with full confidence.

The 1” stem has reduced weight even more by using a single bolt steer tube clamp system, giving the smallest Elevn fans something to be excited about. Offered in 4 colors and 3 sizes, our new Elevn stem has length options for everyone using a 22.2 bar, giving you a stiffer & lighter front end! All this adds up to not only make it the cleanest & best looking stem on the market, but it makes it the ultimate 22.2 1” BMX stem available today!

Features:

Material : 6061 T-6 Alloy
Steer tube Clamp : 1 bolt
Steer tube size : 1”
Bar Clamp size : 22.2mm
Rise : 22.6mm
Stack Height : 24mm
Lengths : 35mm, 40mm, 45mm
Bolts size : M6 x 1.0 x 20mm, 10.9 Grade

Weights :
35mm : 110 g / 3.88 oz
40mm : 120 g / 4.23 oz
45mm : 130 g / 4.58 oz

PRODUCT DETAILS

Data sheet

MATERIAL: Alloy
STEER TUBE: 1"
DIAMETER CLAMP: 22.2mm
CLAMPING TYPE: Top Load

45MM
